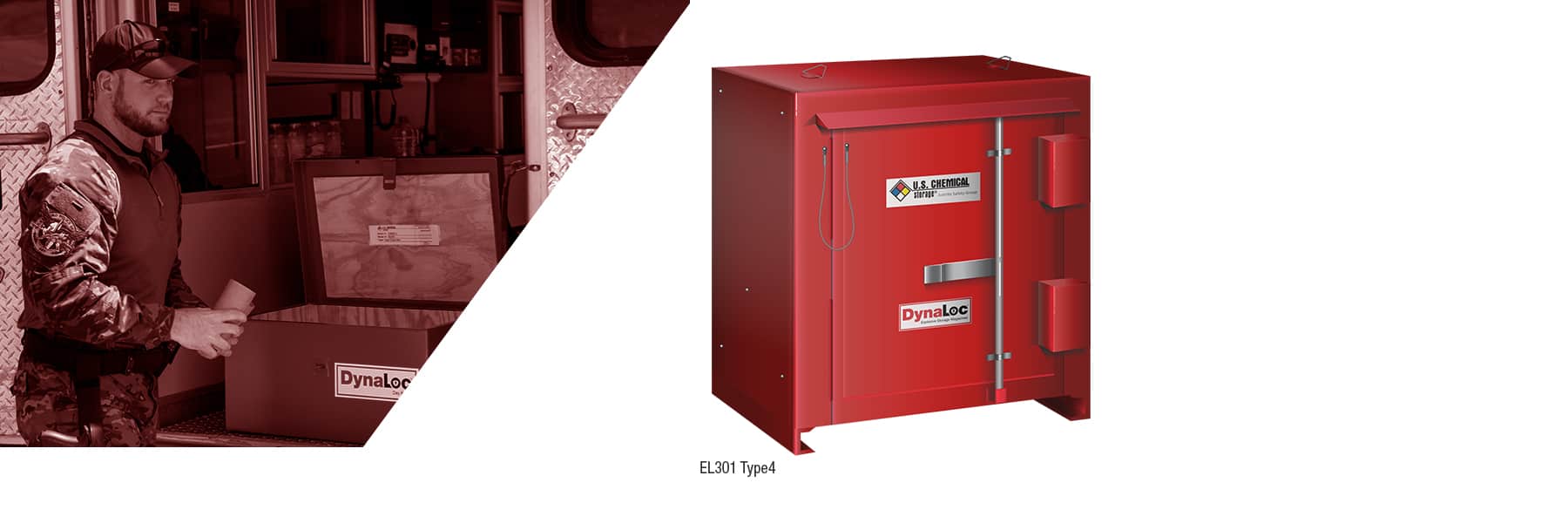

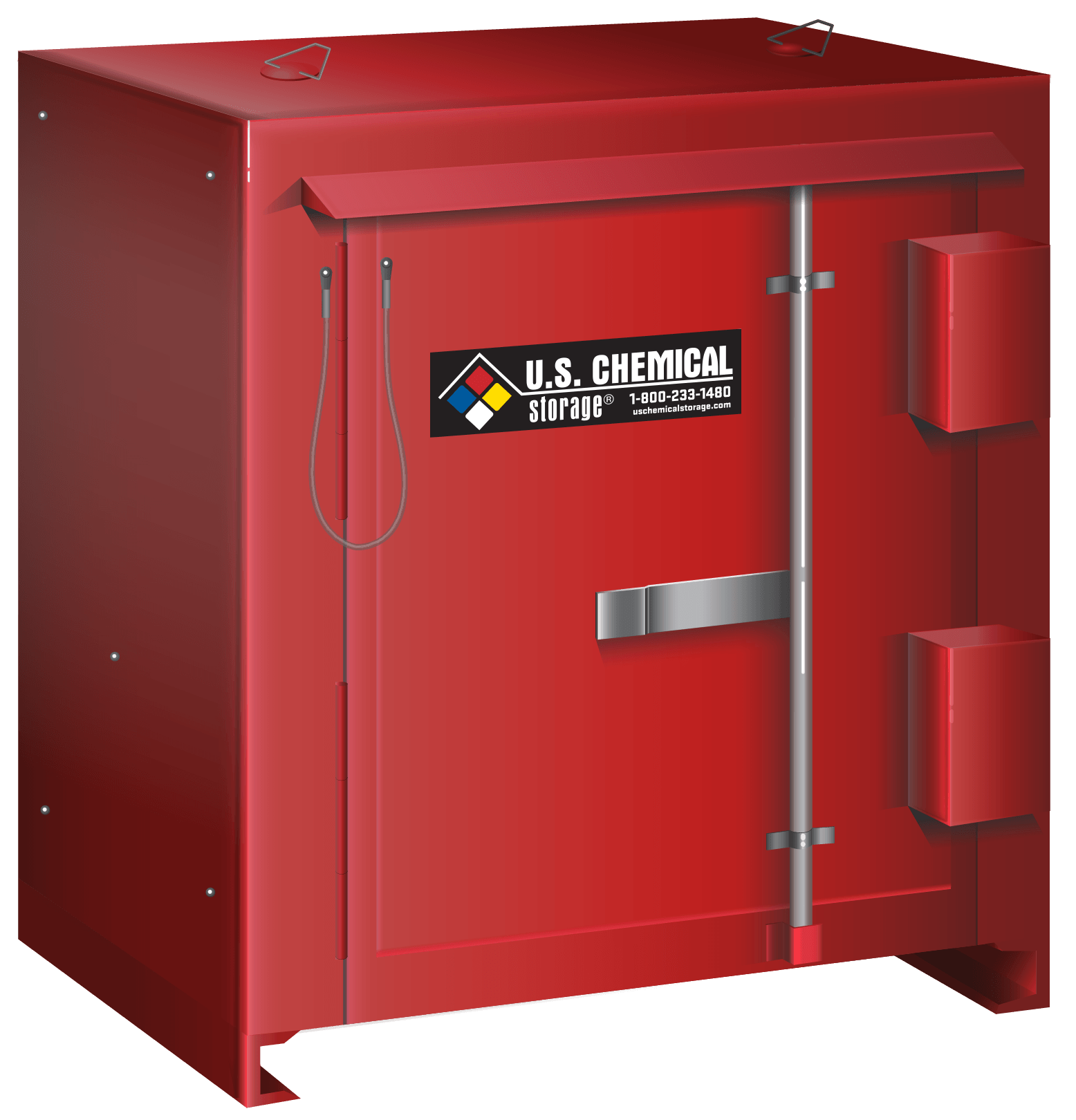

DynaLoc™ Type 4 Explosive Magazine for Low Explosives

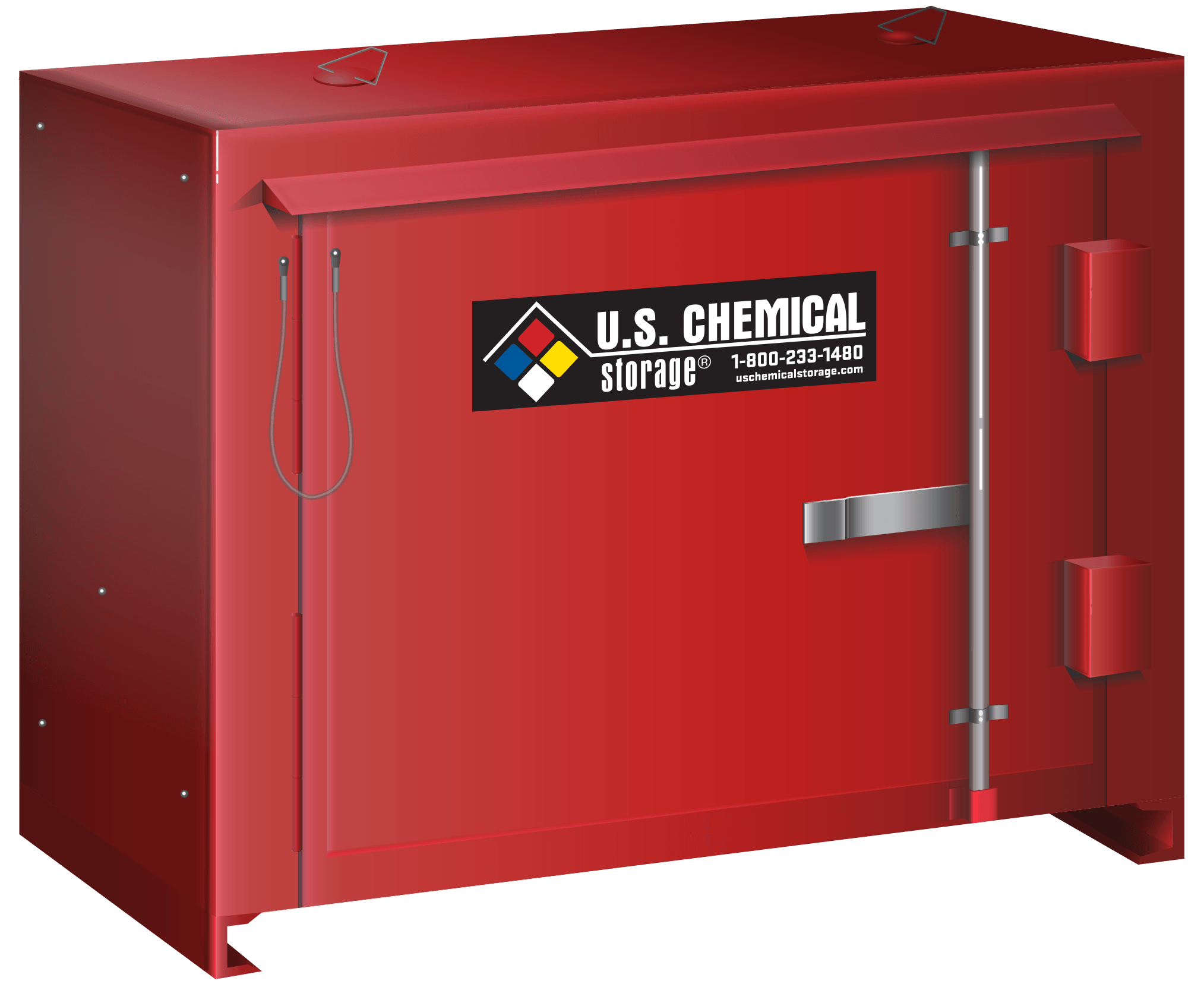

A red DynaLoc Explosive Magazine from US Chemical Storage with cam-lock latch closure and double-lock hood for security
U.S. Chemical Storage engineers durable Type 4 explosive magazine storage for indoor or outdoor storage of your low explosives. Each explosive storage magazine features forklift pockets and crane lifting eyes for easy relocation.

Type 4 Magazine Storage Features & Benefits

  • Fire-resistant
  • Weather resistant (not required for indoors)
  • Theft-resistant
  • Optional detonator box
  • 12-gauge steel construction lined with ¾-inch of hardwood or non-sparking material
  • Double locking door system features ¼-inch steel hood for security
  • Designed to mount on open channel construction to prevent contact with the ground
  • 25 standard models

Explosive Storage Magazine Compliance

All magazines meet and exceed:
  • ATF 27 CFR, Part 555.208

Common Applications

  • Black powder and ammunition storage
  • Fireworks/pyrotechnics storage

Downloadable Information & Fact Sheets

Features


Exterior Dimensions: L x W x H

Diagram of a bright red explosive storage magazine with height, width, and length directions


Type 4 Storage Magazine Sizes

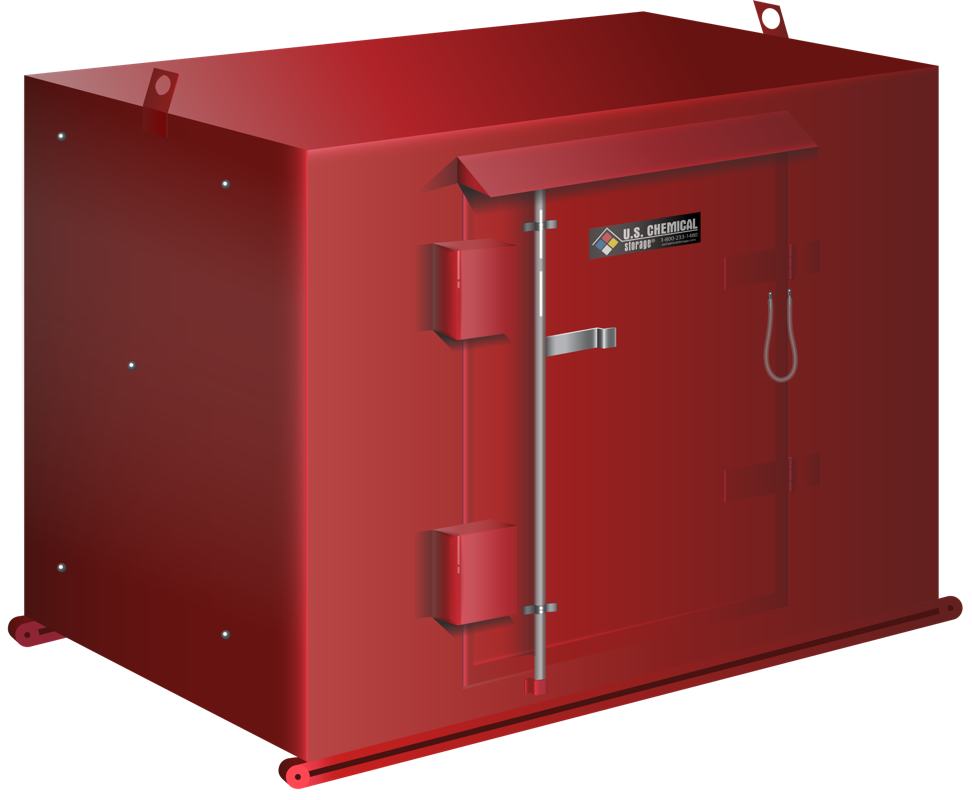

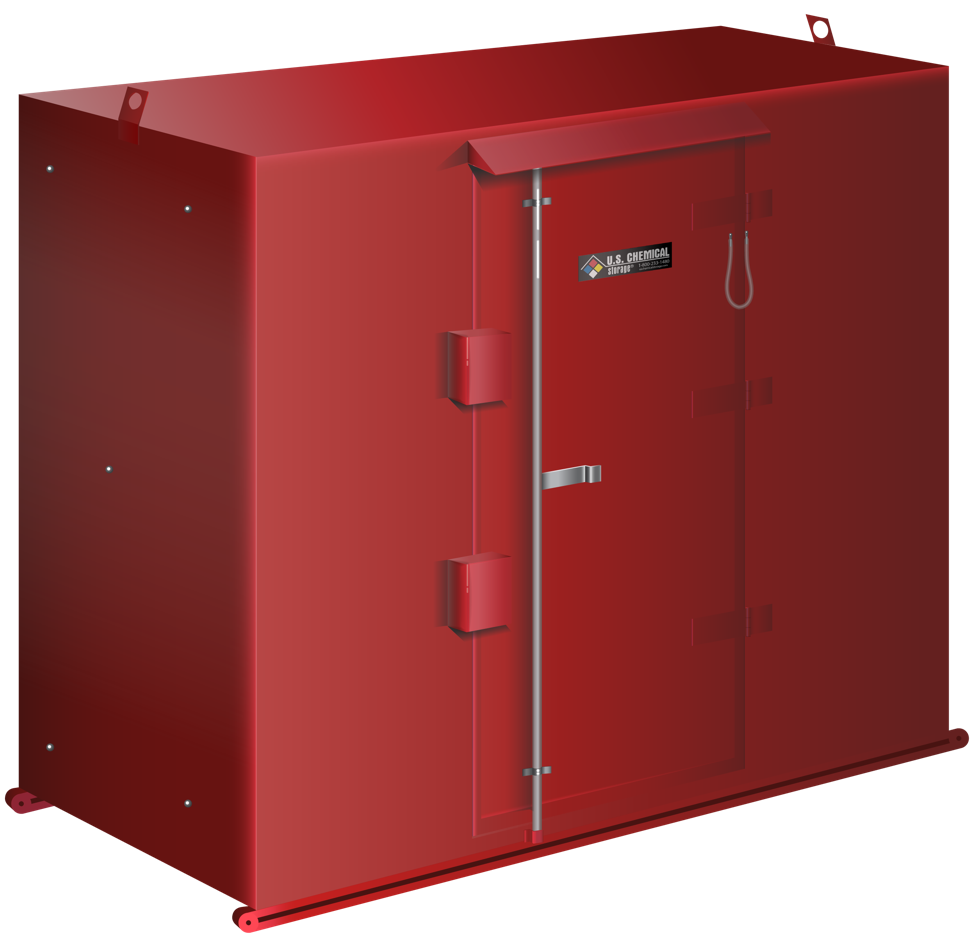

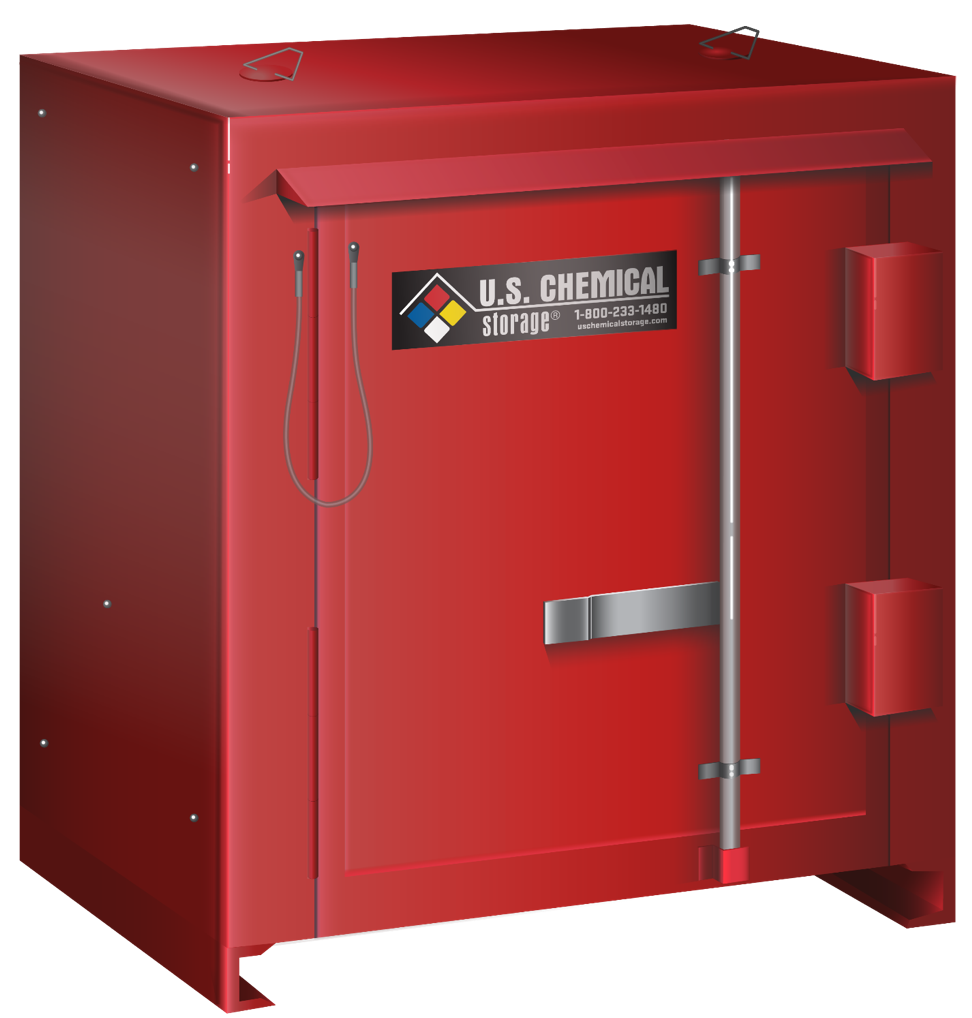

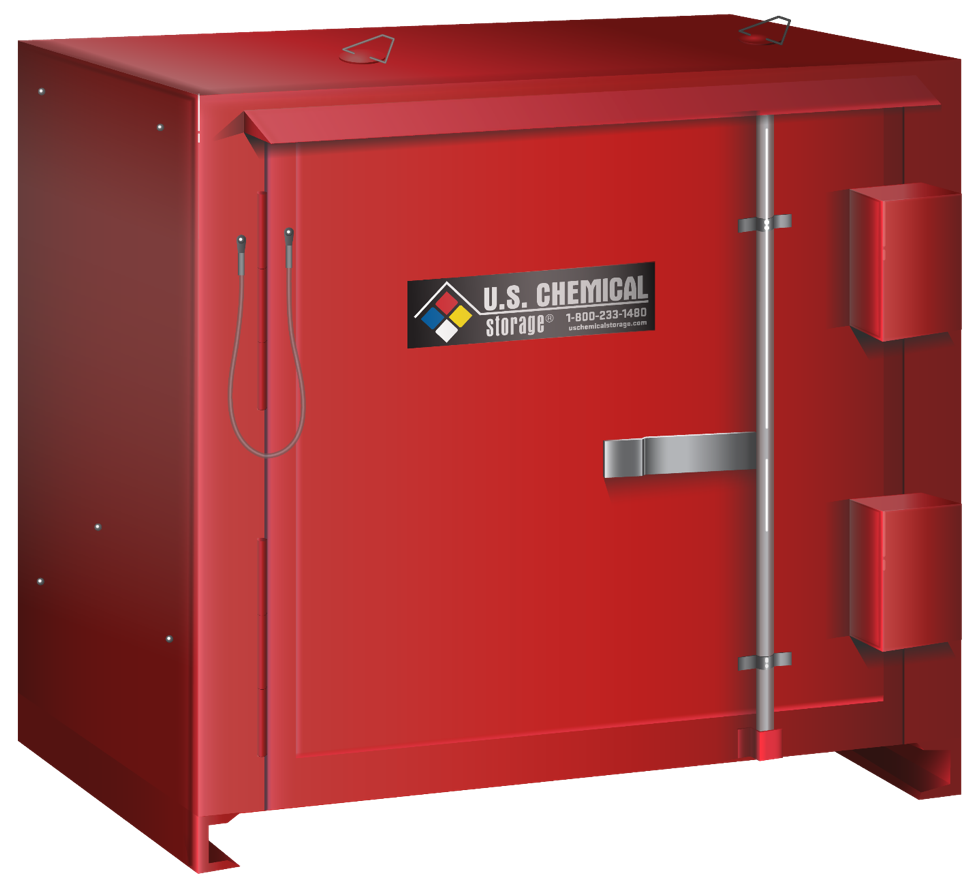

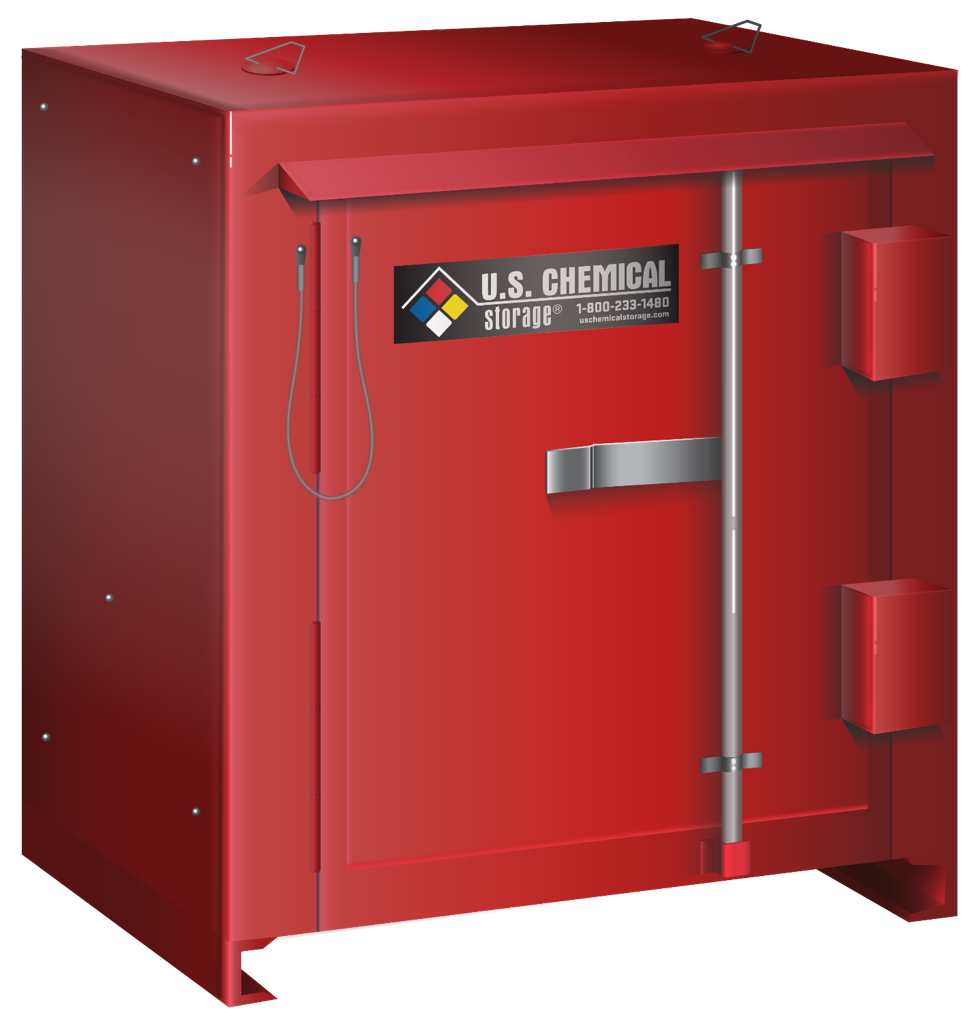

Type 4 Magazine

Dimensions Exterior: 36 x 36 x 36 in (LxWxH)
Dimensions Interior: 34.8 x 34.8 x 34.8 in

Type 4 Magazine

Dimensions Exterior: 42 x 42 x 36 in (LxWxH)
Dimensions Interior: 40.8 x 40.8 x 34.8 in

Type 4 Magazine

Dimensions Exterior: 42 x 42 x 42 in (LxWxH)
Dimensions Interior: 40.8 x 40.8 x 40.8 in

Type 4 Magazine

Dimensions Exterior: 48 x 48 x 48 in (LxWxH)
Dimensions Interior: 46.8 x 46.8 x 46.8 in

Type 4 Magazine

Dimensions Exterior: 60 x 48 x 48 in (LxWxH)
Dimensions Interior: 58.8 x 46.8 x 46.8 in

Type 4 Magazine

Dimensions Exterior: 72 x 48 x 48 in (LxWxH)
Dimensions Interior: 63 x 39 x 43.8 in

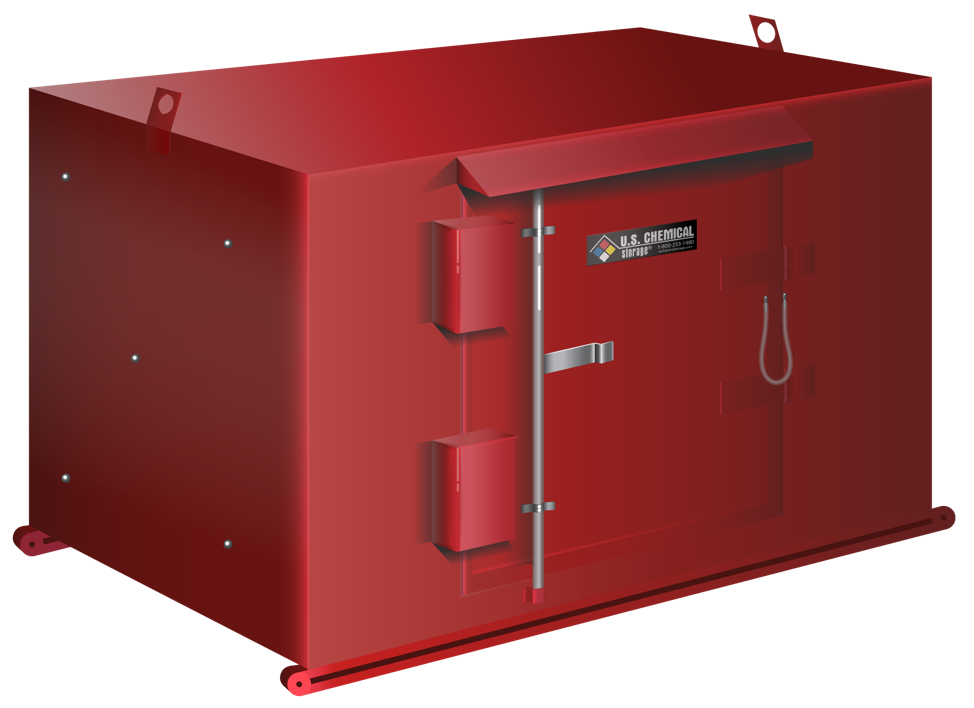

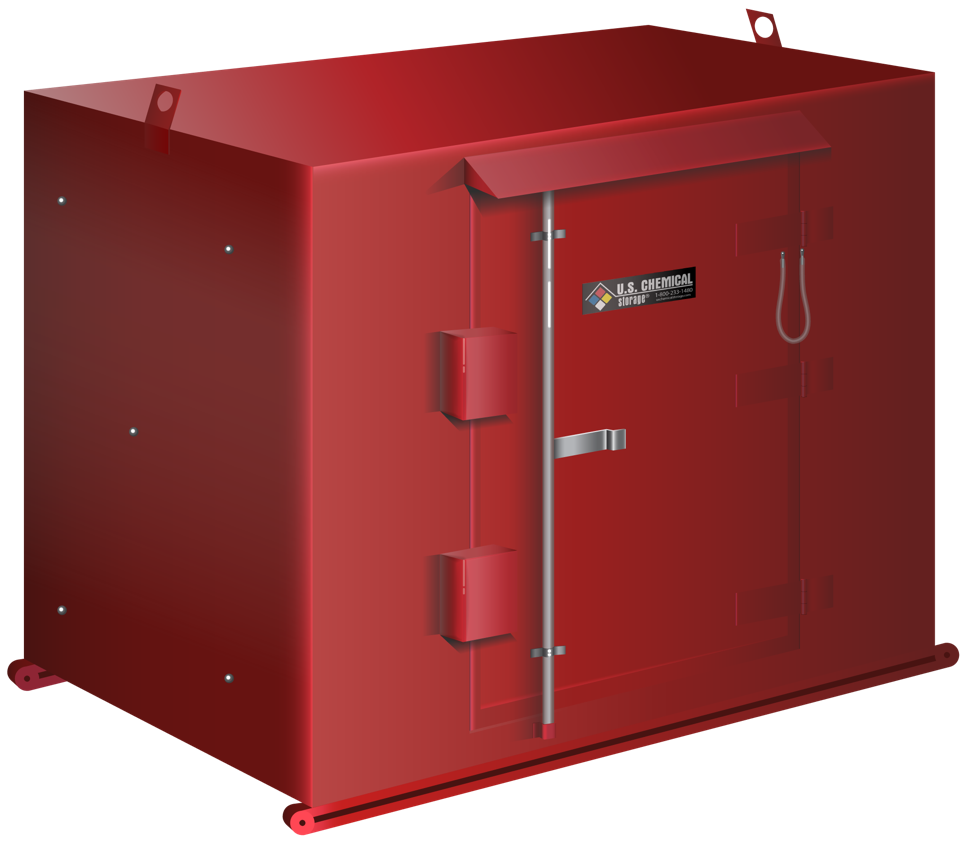

Type 4 Magazine

Dimensions Exterior: 66 x 60 x 60 in (LxWxH)
Dimensions Interior: 57 x 51 x 55.8 in

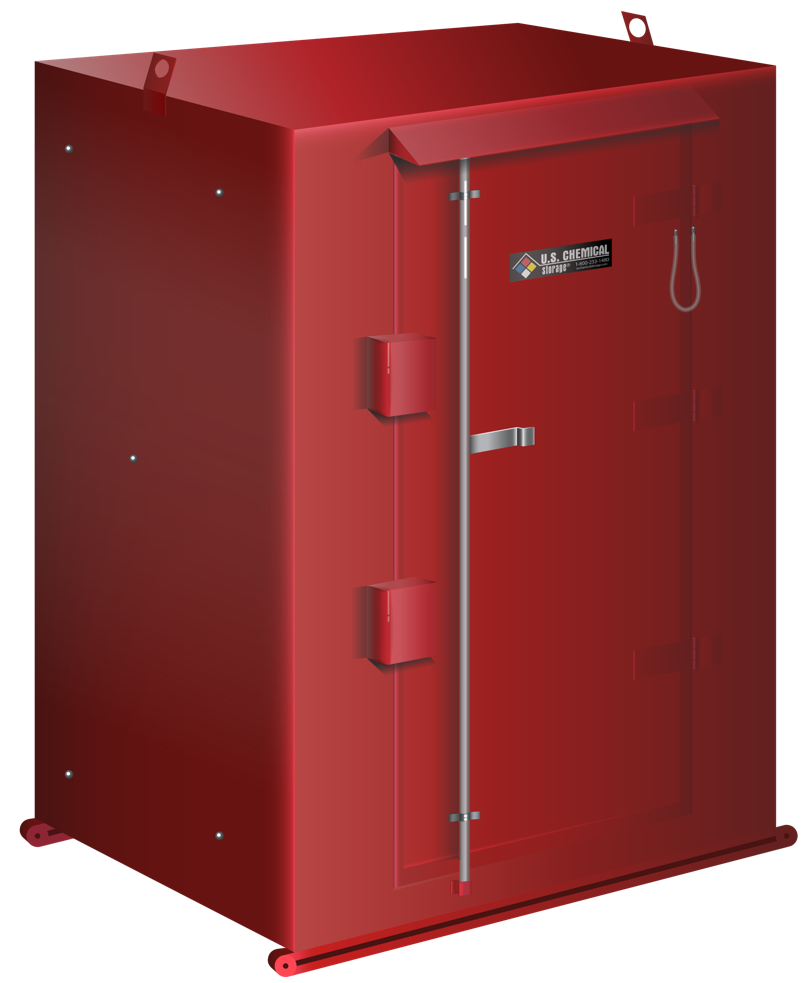

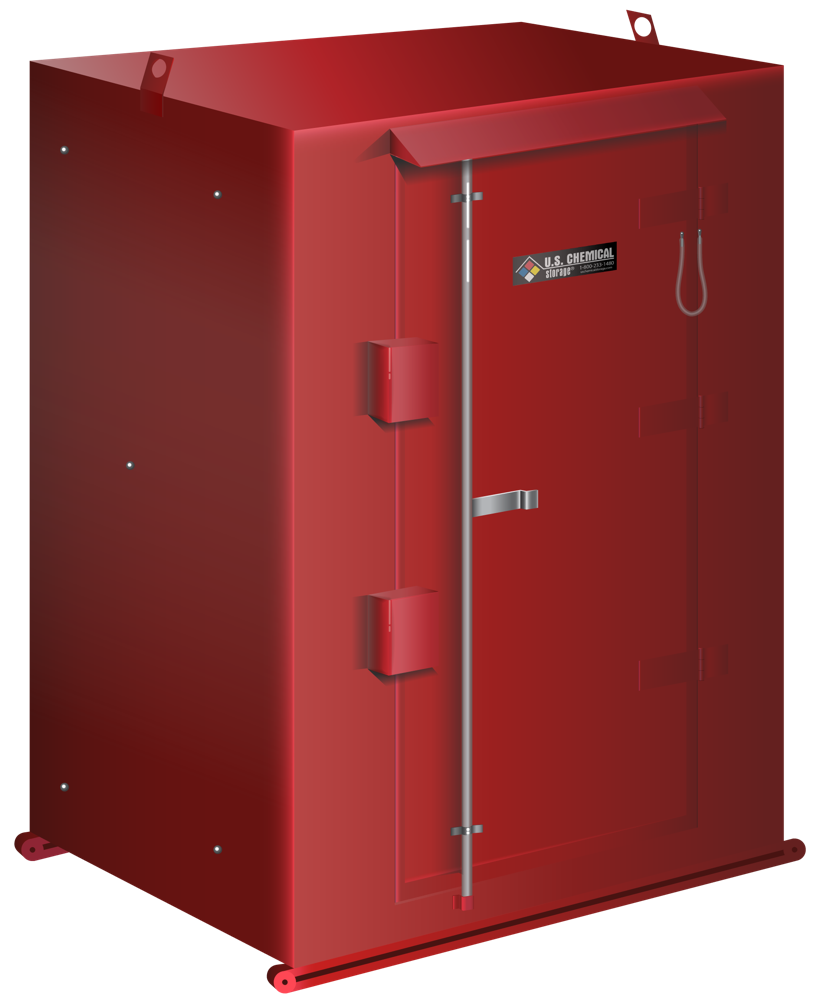

Type 4 Magazine

Dimensions Exterior: 60 x 48 x 84 in (LxWxH)
Dimensions Interior: 51 x 39 x 79.8 in

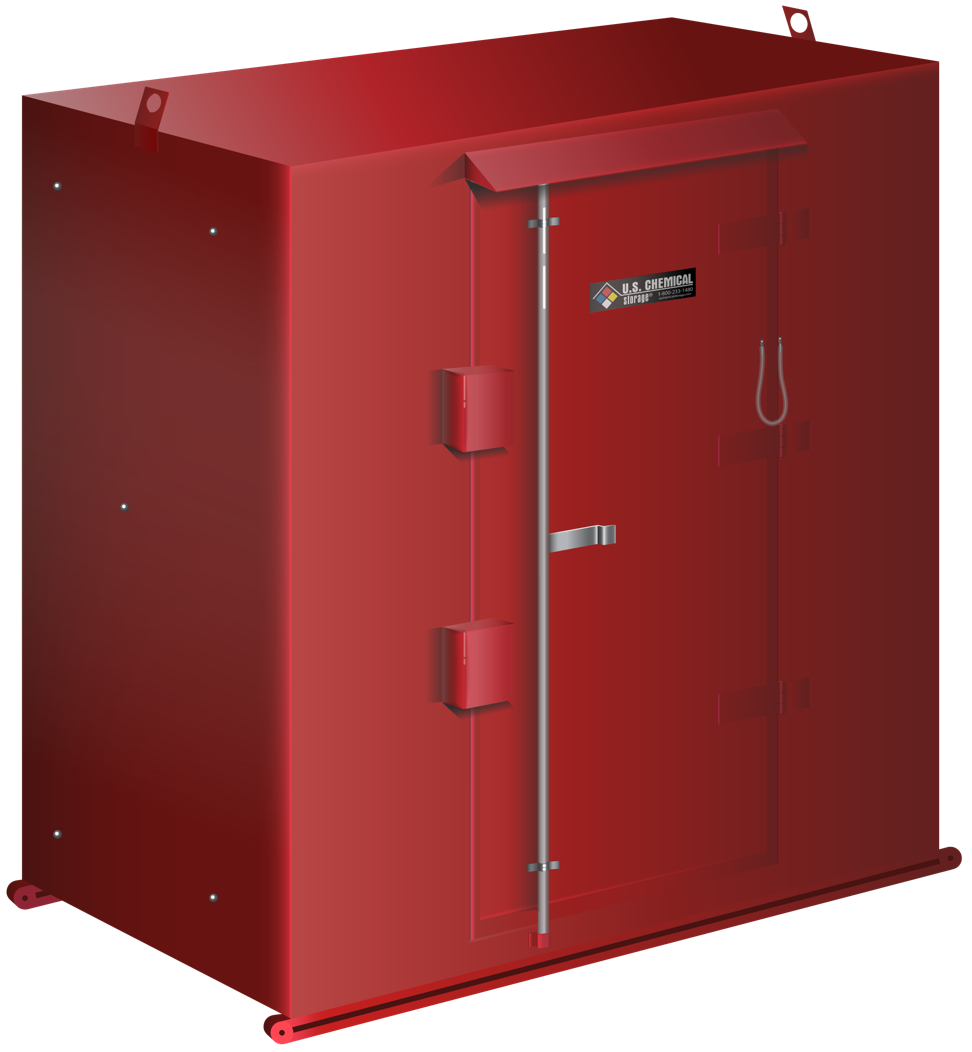

Type 4 Magazine

Dimensions Exterior: 60 x 60 x 84 in (LxWxH)
Dimensions Interior: 51 x 51 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 72 x 72 x 72 in (LxWxH)
Dimensions Interior: 63 x 63 x 67.8 in

Type 4 Magazine

Dimensions Exterior: 84 x 66 x 84 in (LxWxH)
Dimensions Interior: 75 x 57 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 84 x 84 x 84 in (LxWxH)
Dimensions Interior: 75 x 75 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 96 x 84 x 84 in (LxWxH)
Dimensions Interior: 87 x 75 x 79.8 in

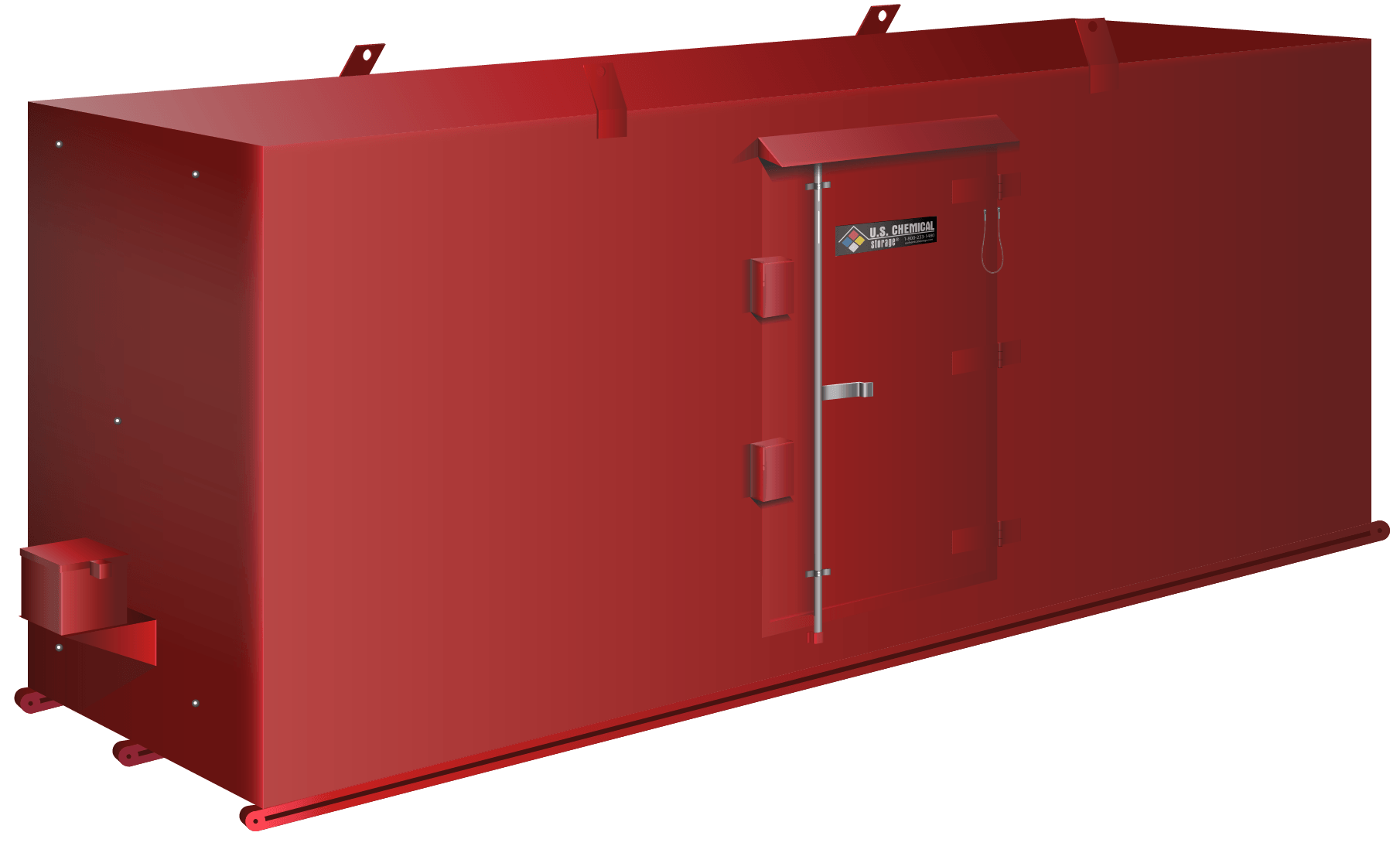

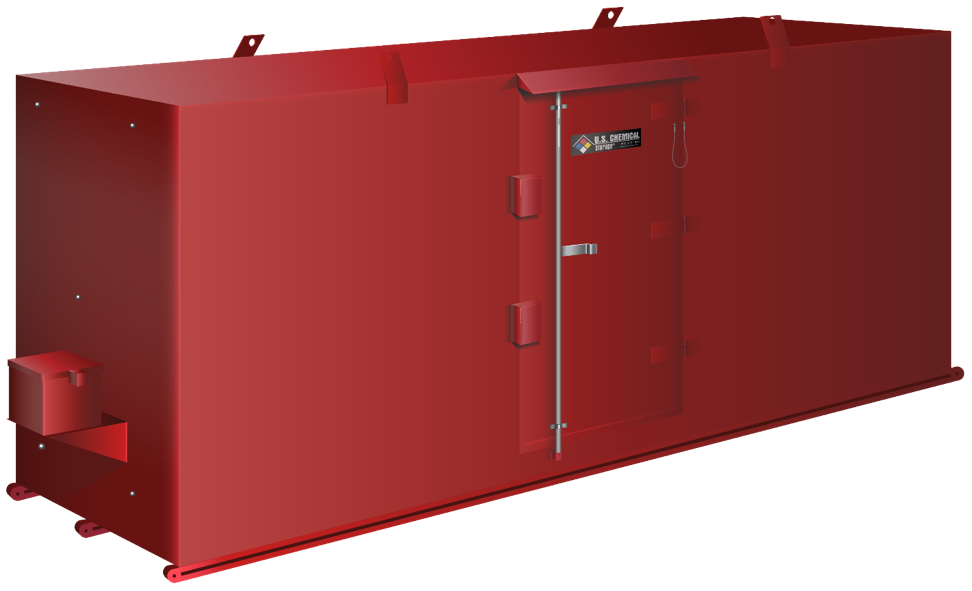

Type 4 Magazine

Dimensions Exterior: 132 x 84 x 84 in (LxWxH)
Dimensions Interior: 123 x 75 x 79.8 in

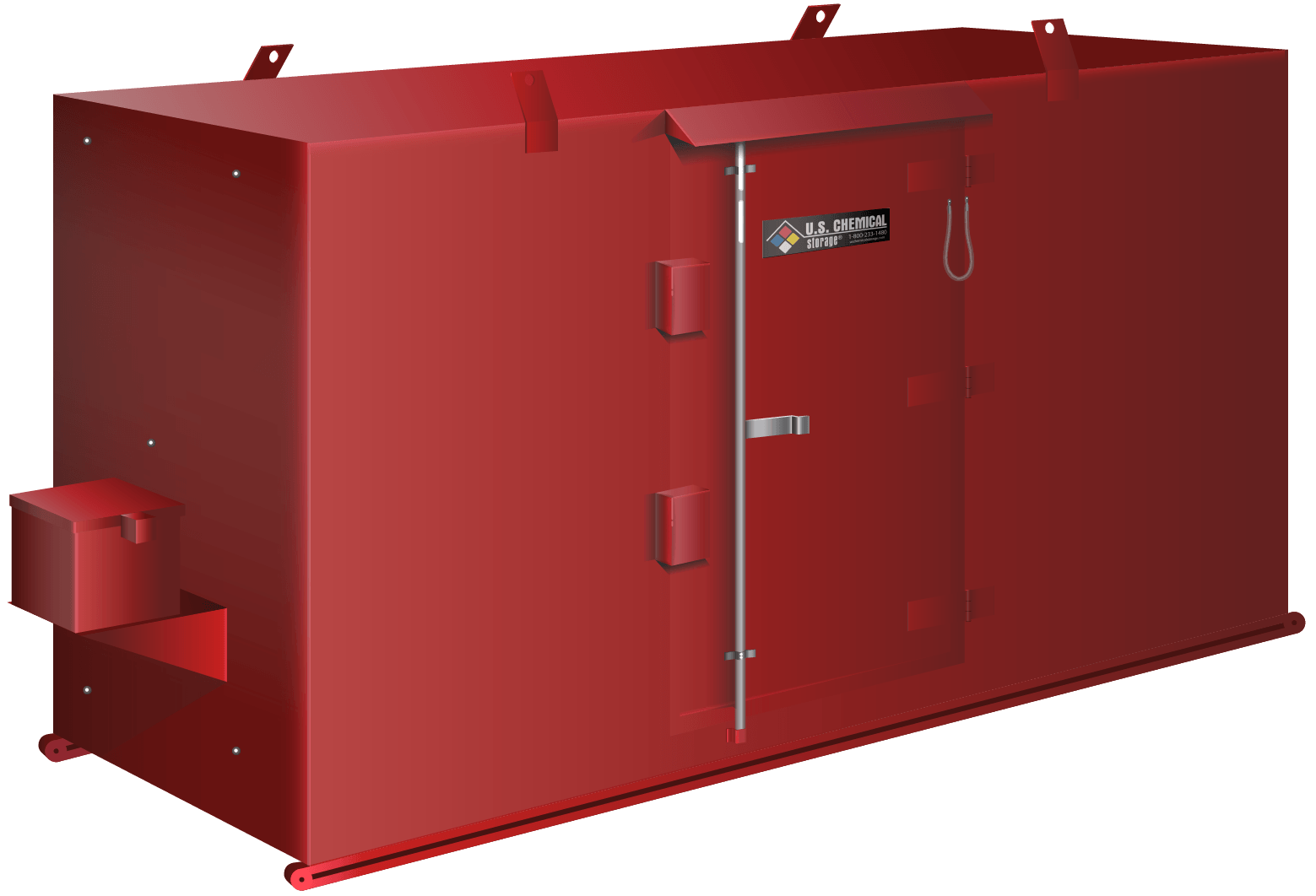

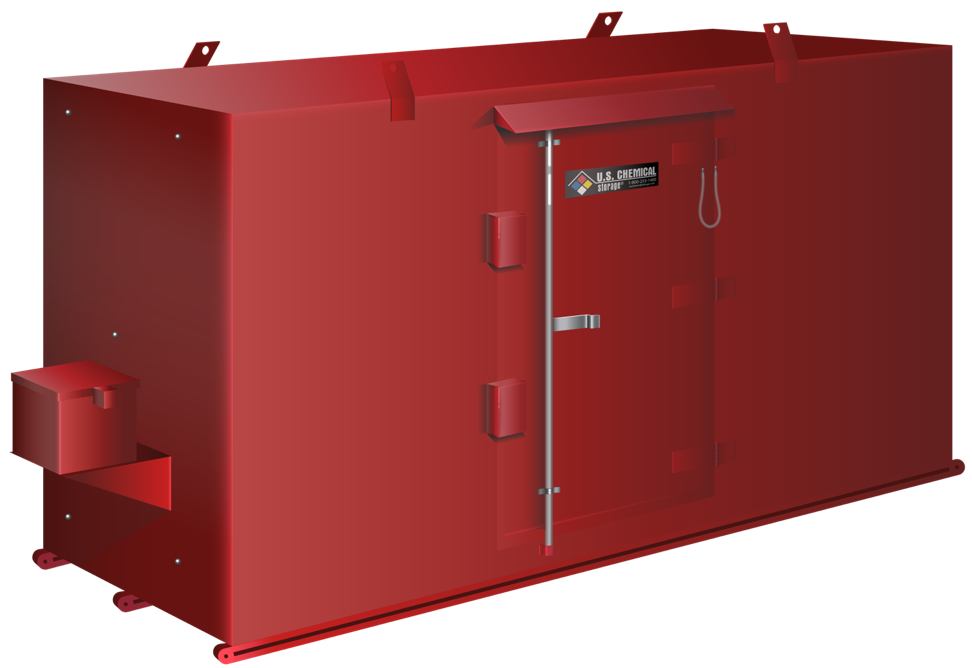

Optional detonator box

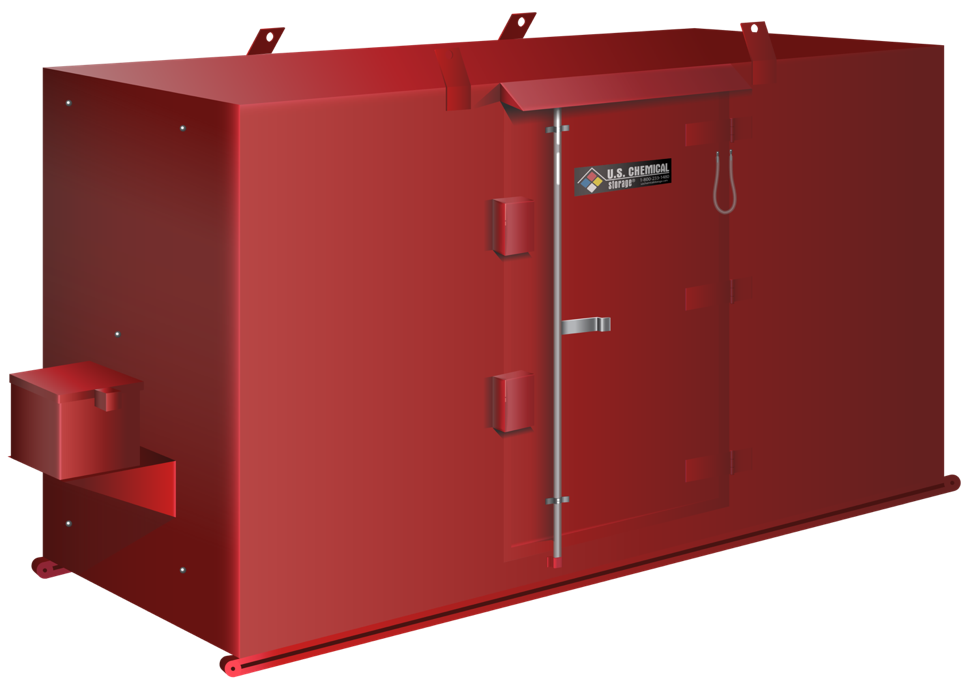

Type 4 Magazine

Dimensions Exterior: 144 x 84 x 84 in (LxWxH)
Dimensions Interior: 135 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 144 x 96 x 90 in (LxWxH)
Dimensions Interior: 135 x 87 x 85.8 in
Optional detonator box

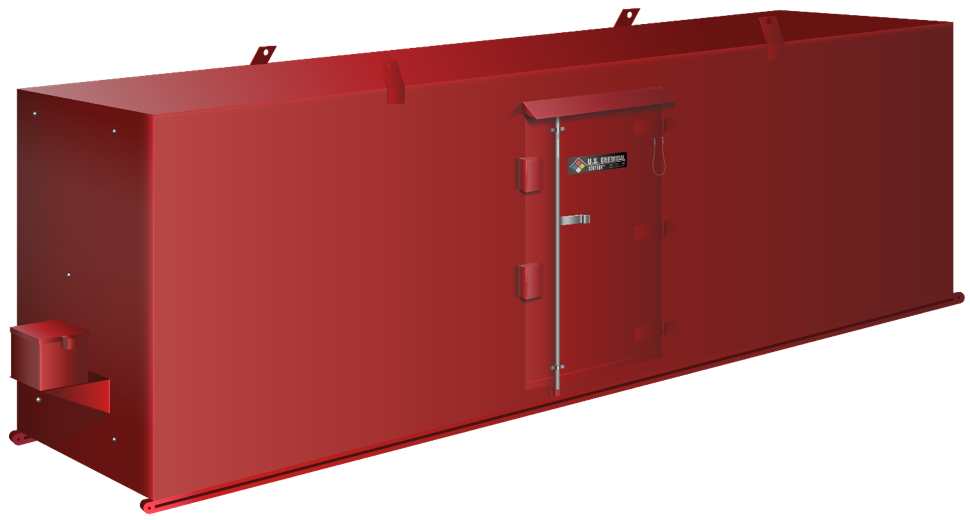

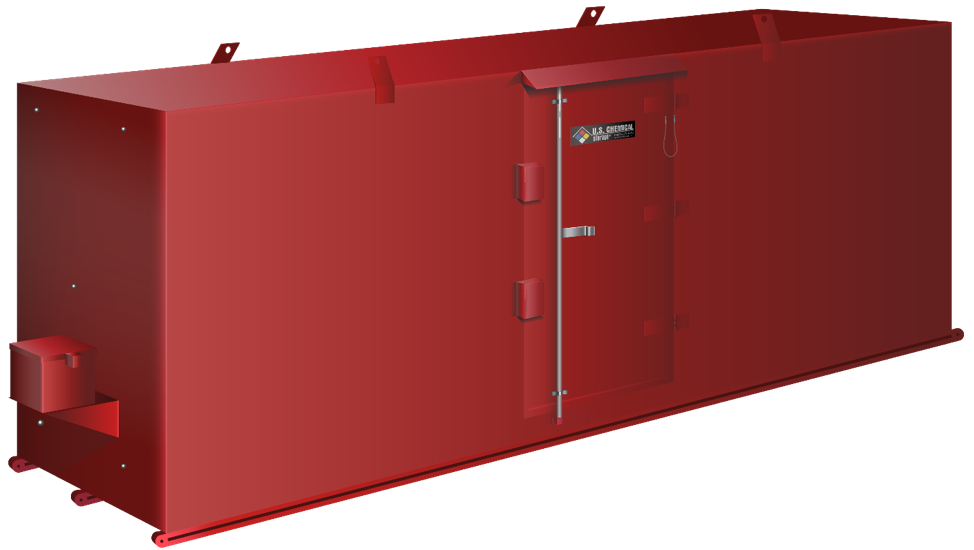

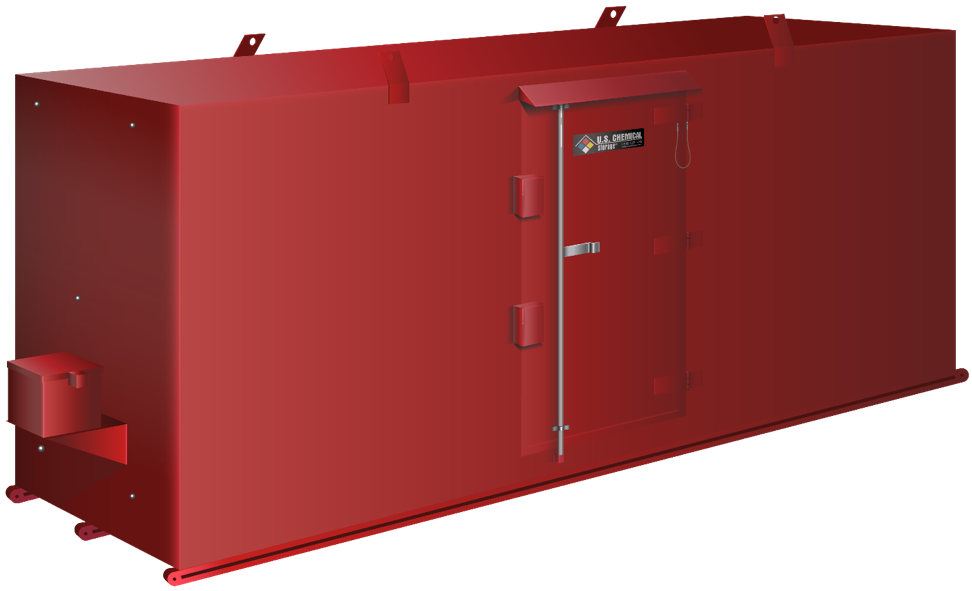

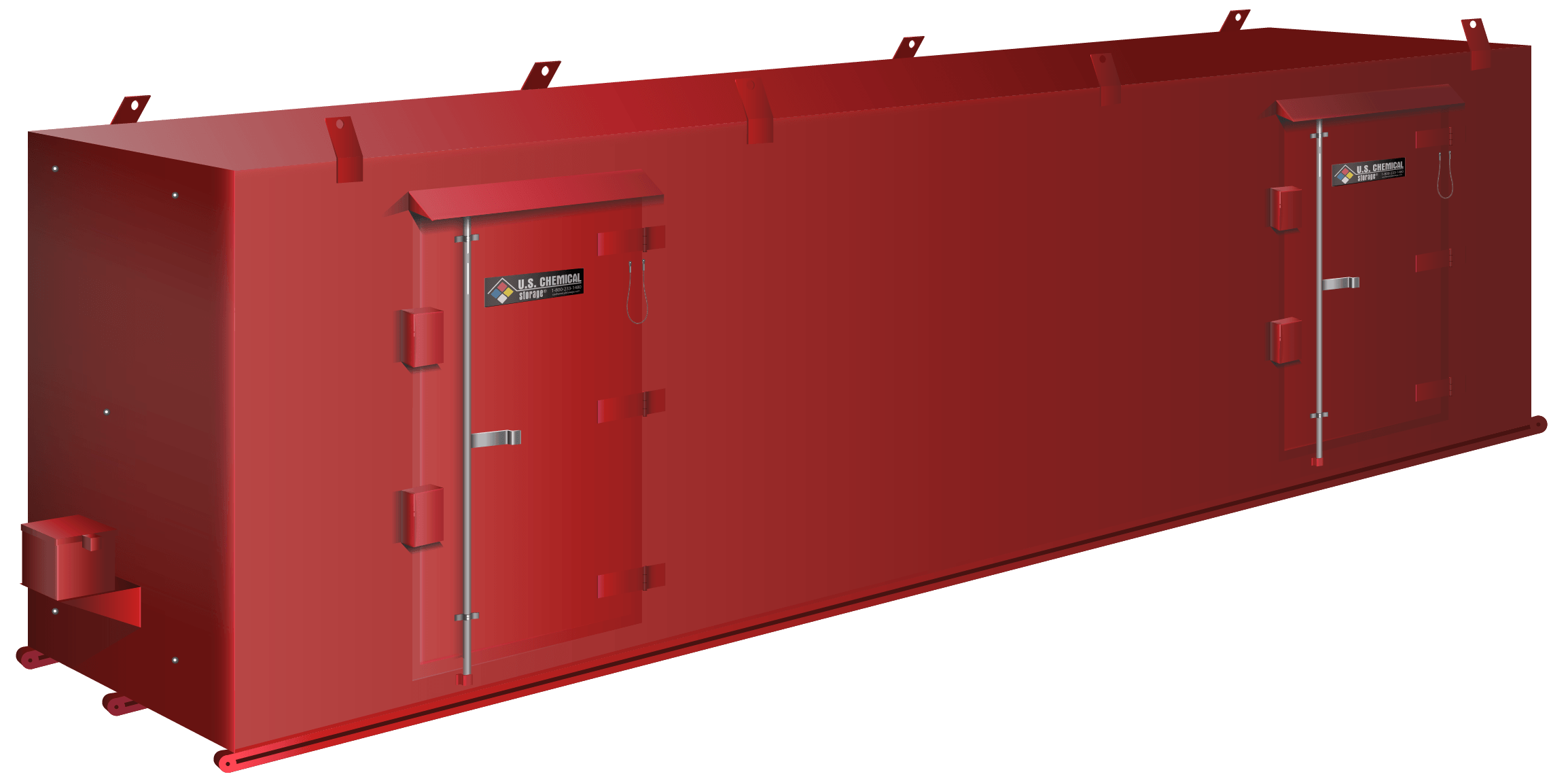

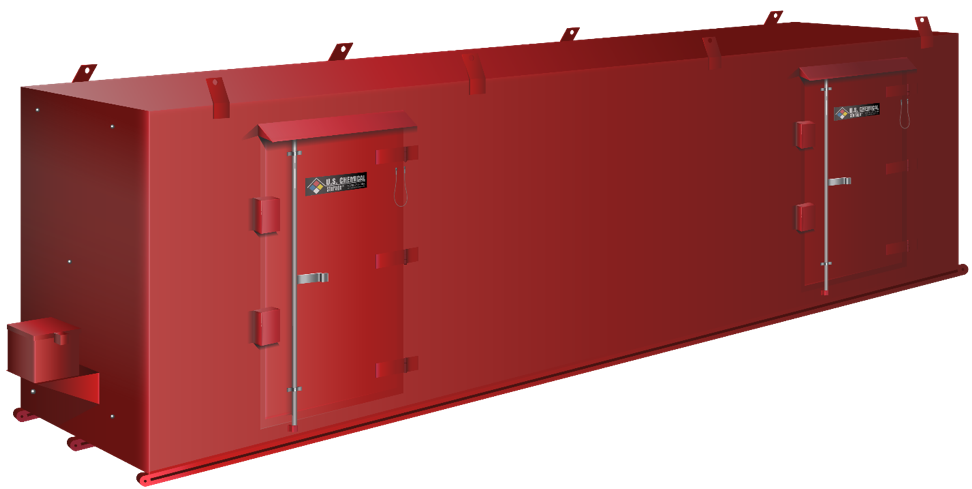

Type 4 Magazine

Dimensions Exterior: 240 x 84 x 84 in (LxWxH)
Dimensions Interior: 231 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 264 x 84 x 84 in (LxWxH)
Dimensions Interior: 255 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 240 x 96 x 90 in (LxWxH)
Dimensions Interior: 231 x 87 x 85.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 240 x 96 x 96 in (LxWxH)
Dimensions Interior: 231 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 288 x 96 x 96 in (LxWxH)
Dimensions Interior: 279 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 336 x 96 x 96 in (LxWxH)
Dimensions Interior: 327 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 384 x 96 x 96 in (LxWxH)
Dimensions Interior: 375 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 432 x 96 x 96 in (LxWxH)
Dimensions Interior: 423 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 480 x 96 x 96 in (LxWxH)
Dimensions Interior: 471 x 87 x 91.8 in
Optional detonator box


Other Types of Explosive Storage Magazines

DynaLoc™ Type 2 Indoor Magazine

DynaLoc™ Type 2 Indoor Magazine

For storing high explosives (up to 50 lbs.) inside your facility. Front-open (cabinet) and top-open styles available. The portable steel construction-lined hardwood storage magazines keeps your explosive components or ammunition secure and safe.

VIEW
type 2 outdoor magazine storage unit from U.S. Chemical Storage

DynaLoc™ Type 2 Outdoor Magazine

For portable outdoor storage of your high explosives. Many models include forklift pockets for easy relocating. U.S. Chemical Storage engineers durable Type 2 portable outdoor storage for your high explosives. Each explosive storage magazine features ¼-inch steel plate construction lined with 3 inches of non-sparking hardwood and a double locking door system.

VIEW

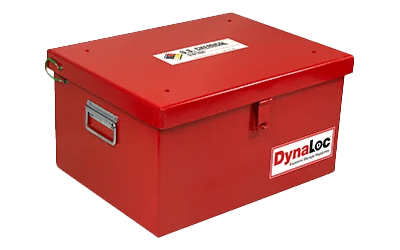

DynaLoc™ Type 3 Day box for Explosives

DynaLoc™ Type 3 Daybox for Explosives

Use Type 3 storage magazines, also known as “dayboxes,” for the transfer and temporary, supervised storage of explosives.

VIEW

FAQs

1. What are the classes of explosives?

For storage purposes, federal requirements classify explosive materials according to their velocity. There are three classes of explosive materials, per ATF 27 CFR 555.202:

  • High Explosives – explosives which detonate by means of a blasting cap (dynamite, emulsions, flash powders, etc.)
  • Low explosives – explosives which deflagrate when confined (black powder, safety fuses, ignitor cords, “display fireworks,” etc.)
  • Blasting agents – explosives consisting of fuel and oxidizer, intended for blasting and unable to detonated by a No. 8 test blasting cap when unconfined (ammonium nitrate-fuel oil and certain water-gels)

For more information, visit https://www.atf.gov/explosives/explosive-storage-requirements.

2. Do I need a foundation for my explosive storage?

It is not necessary to place your explosive storage container on a specific type of foundation. However, a foundation such as concrete can help to provide a truly level surface. Be sure to check your local guidelines to determine if any footer is required.

3. Does my explosive storage need to be grounded?

Yes. High and low explosives that are placed in outdoor magazines should have a grounding system according to the NFPA 70 standard. Grounding protects your magazine and its contents against lightning strike, and it will need to be properly grounded by a licensed electrician. For more information, please refer to NFPA .

4. Can DynaLoc magazines be customized?

Yes. Like all our safe storage buildings, U.S. Chemical Storage can provide custom explosive storage magazines to fit your needs. For assistance creating a custom solution for your storage needs, contact one of our experts.

5. If storage magazines are mostly made of high-density wood, will that really contain a blast?

No. A common misconception is explosive storage magazines will contain a blast inside the unit—this is not the case. Explosive storage magazines work as a safeguard against theft and accidental detonation by improper storage and the environment.
